How to build Microfrontends with Module Federation and Vue

I wanted to write about microfrontends three years ago. My first touchpoint was the book Micro Frontends in Action by Michael Geers. It taught me a lot, and I was still confused. This post shows a practical setup that works today with Vue 3 and Module Federation.

Scope

We build microfrontends for a Vue 3 SPA with client side composition. Server and universal rendering exist, but they are out of scope here.

Microfrontends are the technical representation of a business subdomain. They allow independent implementations with minimal shared code and single team ownership. (Luca Mezzalira)

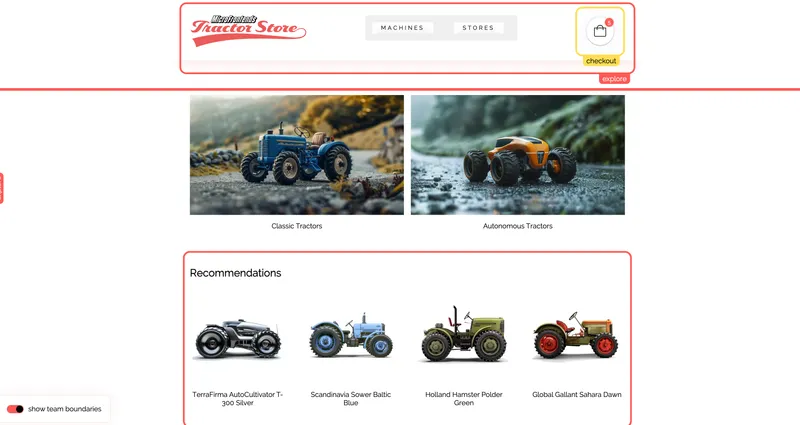

The Tractor Store in one minute

The Tractor Store is a reference shop that lets us compare microfrontend approaches on the same feature set (explore, decide, checkout). It is clear enough to show boundaries and realistic enough to surface routing, shared state, and styling issues.

Architecture decisions

Repository layout:

├── apps/
│   ├── host/          (Shell application)
│   ├── explore/       (Product discovery)
│   ├── decide/        (Product detail)
│   └── checkout/      (Cart and checkout)
├── packages/
│   └── shared/        (UI, tokens, utils)
└── pnpm-workspace.yaml

Workspace definition:

packages:
  - 'apps/*'
  - 'packages/*'

High level view:

Implementation

We compose at the client in the host. The host loads remote components at runtime and routes between them.

Host router

// apps/host/src/router.ts
import { createRouter, createWebHistory } from 'vue-router'
import { remote } from '../utils/remote'

export const router = createRouter({
  history: createWebHistory(),
  routes: [
    { path: '/', component: remote('explore/HomePage') },
    { path: '/products/:category?', component: remote('explore/CategoryPage'), props: true },
    { path: '/product/:id', component: remote('decide/ProductPage'), props: true },
    { path: '/checkout/cart', component: remote('checkout/CartPage') },
  ],
})

remote() utility

import { defineAsyncComponent } from 'vue'

const AsyncComp = defineAsyncComponent({
  loader: () => Promise.resolve(/* component */),
  delay: 200,
  timeout: 3000,
  onError(error, retry, fail, attempts) {
    if (attempts <= 1) retry()
    else fail()
  }
})

// apps/host/src/utils/remote.ts
import { defineAsyncComponent, h } from 'vue'

export function remote(id: string, delay = 150) {
  return defineAsyncComponent({
    loader: async () => {
      const loader = (window as any).getComponent?.(id)
      if (!loader) throw new Error(`Missing loader for ${id}`)
      return await loader()
    },
    delay,
    loadingComponent: { render: () => h('div', { class: 'mf-loading' }, 'Loading...') },
    errorComponent:   { render: () => h('div', { class: 'mf-error' }, 'Failed to load.') },
    onError(error, retry, fail, attempts) {
      if (attempts <= 1) setTimeout(retry, 200)
      else fail()
    },
  })
}

Module Federation runtime

The host bootstraps Module Federation and exposes a single loader.

// apps/host/src/mf.ts
import { createInstance, loadRemote } from '@module-federation/enhanced/runtime'

declare global {
  interface Window {
    getComponent: (id: string) => () => Promise<any>
  }
}

createInstance({
  name: 'host',
  remotes: [
    { name: 'decide',   entry: 'http://localhost:5175/mf-manifest.json', alias: 'decide' },
    { name: 'explore',  entry: 'http://localhost:3004/mf-manifest.json', alias: 'explore' },
    { name: 'checkout', entry: 'http://localhost:3003/mf-manifest.json', alias: 'checkout' },
  ],
  plugins: [
    {
      name: 'fallback-plugin',
      errorLoadRemote(args: any) {
        console.warn(`Failed to load remote: ${args.id}`, args.error)
        return {
          default: {
            template: `<div style="padding: 2rem; text-align: center; border: 1px solid #ddd; border-radius: 8px; background: #f9f9f9; margin: 1rem 0;">
              <h3 style="color: #c00; margin-bottom: 1rem;">Remote unavailable</h3>
              <p><strong>Remote:</strong> ${args.id}</p>
              <p>Try again or check the service.</p>
            </div>`,
          },
        }
      },
    },
  ],
})

window.getComponent = (id: string) => {
  return async () => {
    const mod = await loadRemote(id) as any
    return mod.default || mod
  }
}

Why this setup

• The host is the single source of truth for remote URLs and versions.
• URLs can change without rebuilding remotes.
• The fallback plugin gives a consistent error experience.

Communication

We avoid a shared global store. We use two small patterns that keep coupling low.

Navigation through custom events

Remotes dispatch mf:navigate with { to }. The host listens and calls router.push.

// apps/host/src/main.ts
window.addEventListener('mf:navigate', (e: Event) => {
  const to = (e as CustomEvent).detail?.to
  if (to) router.push(to)
})

Cart sync through localStorage plus events

The checkout microfrontend owns cart logic. It listens for add-to-cart and remove-from-cart. After each change, it writes to localStorage and dispatches updated-cart. Any component can listen and re read.

// apps/checkout/src/stores/cartStore.ts
window.addEventListener('add-to-cart', (ev: Event) => {
  const { sku } = (ev as CustomEvent).detail
  // update cart array here
  localStorage.setItem('cart', JSON.stringify(cart))
  window.dispatchEvent(new CustomEvent('updated-cart'))
})

Styling

• Design tokens in packages/shared (CSS variables).
• Shared UI in packages/shared/ui (Button, Input, Card).
• Local isolation with Vue scoped styles or BEM with team prefixes (e_, d_, c_, h_).
• Host provides .mf-loading and .mf-error classes for fallback UI.

Example with BEM plus team prefix:

/* decide */
.d_ProductPage__title { font-size: 2rem; color: var(--color-primary); }
.d_ProductPage__title--featured { color: var(--color-accent); }

Or Vue scoped styles:

<template>
  <div class="product-information">
    <h1 class="title">{{ product.name }}</h1>
  </div>
</template>

<style scoped>
.product-information { padding: 1rem; }
.title { font-size: 2rem; }
</style>

Operations

Plan for failure and keep the shell alive.

• Each remote shows a clear loading state and a clear error state.
• Navigation works even if a remote fails.
• Logs are visible in the host during development.

Global styles in the host help here:

/* apps/host/src/styles.css */
.mf-loading {
  display: flex;
  align-items: center;
  justify-content: center;
  padding: 2rem;
  color: var(--color-text-muted);
}

.mf-error {
  padding: 1rem;
  background: var(--color-error-background);
  border: 1px solid var(--color-error-border);
  color: var(--color-error-text);
  border-radius: 4px;
}

More Module Federation features (short hints)

Our solution is simple on purpose. Module Federation can do more. Use these when your app needs them.

Prefetch (requires registering lazyLoadComponentPlugin)
Pre load JS, CSS, and data for a remote before the user clicks (for example on hover). This cuts wait time.

// after registering lazyLoadComponentPlugin on the runtime instance
import { getInstance } from '@module-federation/enhanced/runtime'

const mf = getInstance()
function onHover() {
  mf.prefetch({
    id: 'shop/Button',
    dataFetchParams: { productId: '12345' },
    preloadComponentResource: true, // also fetch JS and CSS
  })
}

Component level data fetching
Expose a .data loader next to a component. The consumer can ask the runtime to fetch data before render (works in CSR and SSR). Use a .data.client.ts file for client loaders when SSR falls back.

Caching for loaders
Wrap expensive loaders in a cache helper (with maxAge, revalidate, tag, and custom keys). You get stale while revalidate behavior and tag based invalidation.

// inside your DataLoader file
const fetchDashboard = cache(async () => getStats(), { maxAge: 120000, revalidate: 60000 })

Type hinting for remotes
@module-federation/enhanced can generate types for exposes. Add this to tsconfig.json so editors resolve remote types and hot reload them.

{
  "compilerOptions": { "paths": { "*": ["./@mf-types/*"] } },
  "include": ["./@mf-types/*"]
}

Vue bridge for app level modules
Mount a whole remote Vue app into a route when you need an application level integration (not just a component).

import { createRemoteAppComponent } from '@module-federation/bridge-vue3'
const RemoteApp = createRemoteAppComponent({ loader: () => loadRemote('remote1/export-app') })
// router: { path: '/remote1/:pathMatch(.*)*', component: RemoteApp }

You can read more about these interesting techniques at module-federation.io.

Summary

This was my first attempt to understand microfrontends better while solving the Tractor Store exercise.

In the future, I may also try it with SSR and universal rendering, which I find interesting.

Another option could be to use Nuxt Layers and take a “microfrontend-ish” approach at build time.
